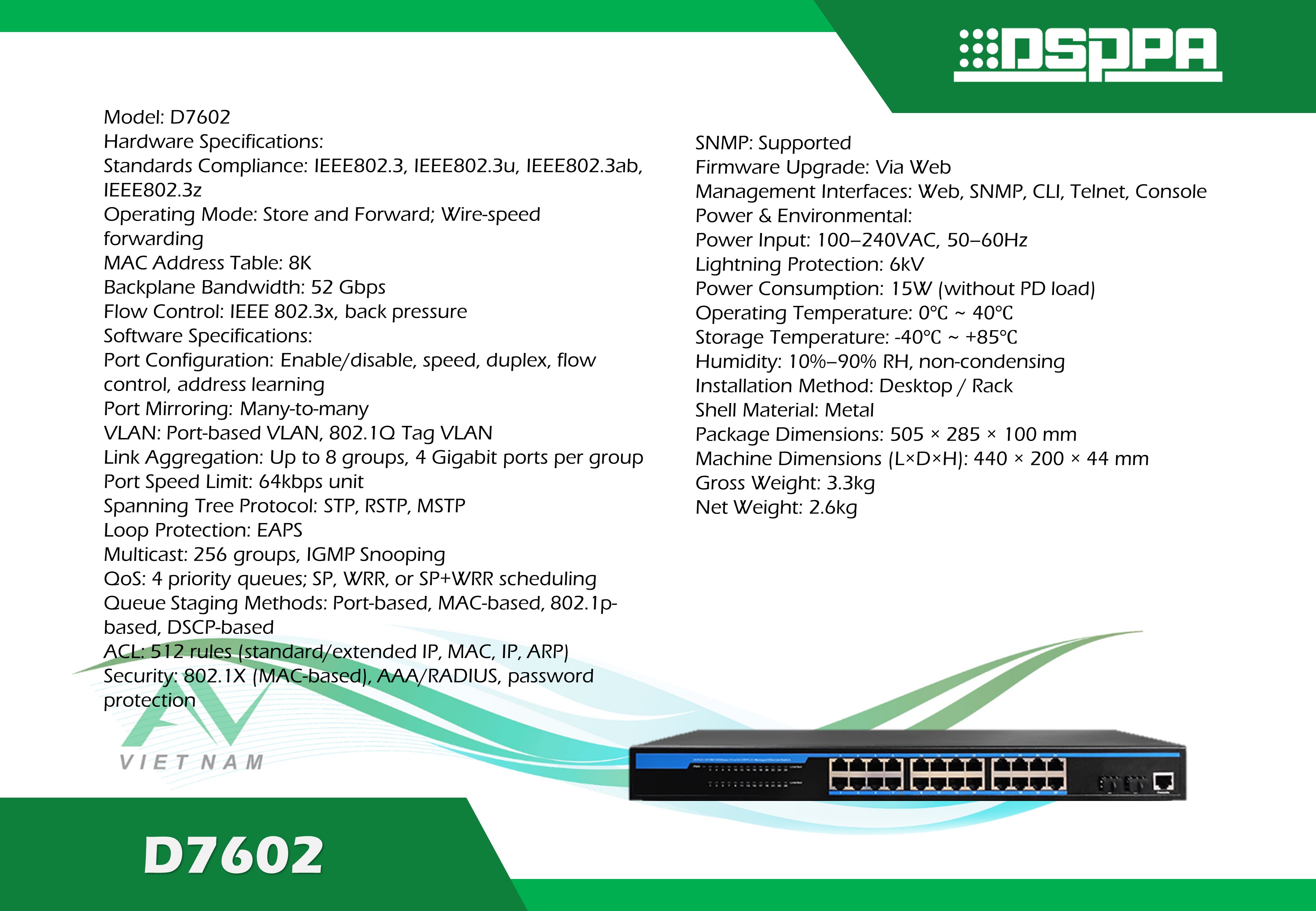

Model: D7602
Thông số kỹ thuật:
Hardware Specifications:
Standards Compliance: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z
Operating Mode: Store and Forward; Wire-speed forwarding
MAC Address Table: 8K
Backplane Bandwidth: 52 Gbps
Flow Control: IEEE 802.3x, back pressure
Software Specifications:
Port Configuration: Enable/disable, speed, duplex, flow control, address learning
Port Mirroring: Many-to-many
VLAN: Port-based VLAN, 802.1Q Tag VLAN
Link Aggregation: Up to 8 groups, 4 Gigabit ports per group
Port Speed Limit: 64kbps unit
Spanning Tree Protocol: STP, RSTP, MSTP
Loop Protection: EAPS
Multicast: 256 groups, IGMP Snooping
QoS: 4 priority queues; SP, WRR, or SP+WRR scheduling
Queue Staging Methods: Port-based, MAC-based, 802.1p-based, DSCP-based
ACL: 512 rules (standard/extended IP, MAC, IP, ARP)
Security: 802.1X (MAC-based), AAA/RADIUS, password protection
SNMP: Supported
Firmware Upgrade: Via Web
Management Interfaces: Web, SNMP, CLI, Telnet, Console
Power & Environmental:
Power Input: 100–240VAC, 50–60Hz
Lightning Protection: 6kV
Power Consumption: 15W (without PD load)
Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40℃ ~ +85℃
Humidity: 10%–90% RH, non-condensing
Installation Method: Desktop / Rack
Shell Material: Metal
Package Dimensions: 505 × 285 × 100 mm
Machine Dimensions (L×D×H): 440 × 200 × 44 mm
Gross Weight: 3.3kg
Net Weight: 2.6kg
-----------
