DSPPA MAG6468 - Loa gắn trần giảng dạy

DSPPA MAG6468 - Loa gắn trần giảng dạy

Tình trạng: Còn trong kho
Liên hệ

● Can play background music, emergency paging, alarm signals from the system host, with network program sources featuring a priority management function with over 7 levels, categorized into three main types: background broadcasting, service broadcasting, and emergency broadcasting.
● Employ 4×4.5-inch full-range speaker units, providing uniform 360-degree sound coverage for enhanced performance.
● Indoor sound field uniformity: The difference between the maximum and minimum steady-state sound pressure levels measured at various student seating points within the indoor environment should be within a range of 4dB.
● Speech transmission index for public address systems ((STIPA): ≤0.7.
● Rated output power of the built-in amplifier: 4×15W.


DSPPA MAG6468 - Loa gắn trần giảng dạy



Cam kết chất lượng

Cam kết dịch vụ

Cam kết giá tốt

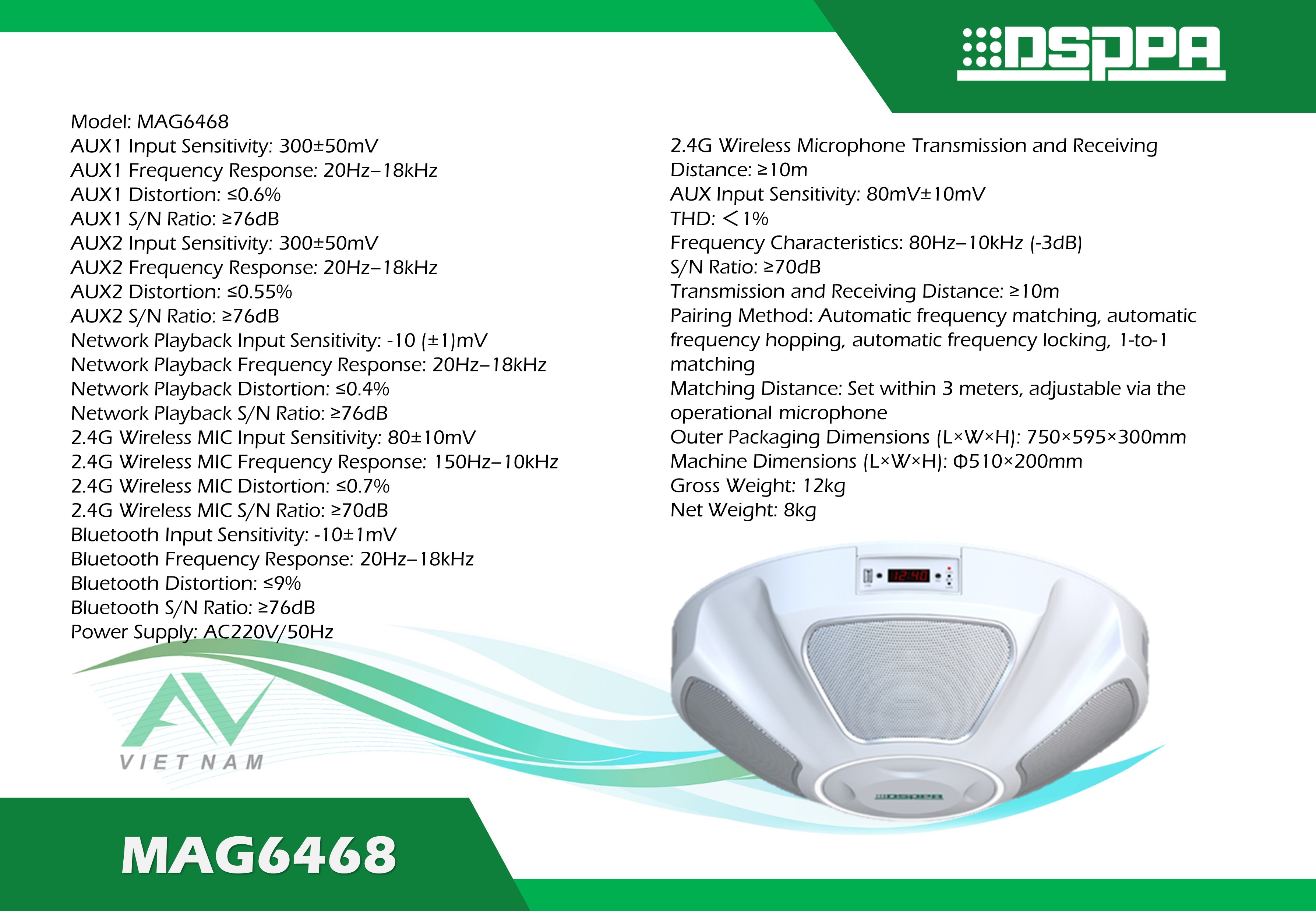

Model: MAG6468

Loa âm trần lớp học mạng IP sử dụng chip xử lý âm thanh chuyên nghiệp và hoạt động trên hệ điều hành Linux nhúng, đảm bảo tính ổn định và độ tin cậy. Loa quản lý nguồn chương trình mạng với chức năng quản lý ưu tiên 7 cấp độ trở lên, được chia thành ba loại: phát sóng nền, phát sóng dịch vụ và phát sóng khẩn cấp. Loa hỗ trợ phát lại nhạc nền, nhắn tin khẩn cấp và tín hiệu báo động từ máy chủ hệ thống. Ngoài ra, loa còn cung cấp hai đầu vào đường truyền cục bộ để mở rộng nguồn chương trình và hỗ trợ khuếch đại Bluetooth, đảm bảo đầu ra âm thanh rõ ràng và trong trẻo. Với mô-đun thu micro không dây 2.4G tích hợp, loa cho phép khuếch đại cục bộ với các micro không dây tương thích, hỗ trợ cấu hình một giáo viên - một micro. Với hiệu suất hoạt động cao, thiết bị này phù hợp với nhiều môi trường khác nhau.

MAG6468

Tính năng:

● Can play background music, emergency paging, alarm signals from the system host, with network program sources featuring a priority management function with over 7 levels, categorized into three main types: background broadcasting, service broadcasting, and emergency broadcasting.
● Employ 4×4.5-inch full-range speaker units, providing uniform 360-degree sound coverage for enhanced performance.
● Indoor sound field uniformity: The difference between the maximum and minimum steady-state sound pressure levels measured at various student seating points within the indoor environment should be within a range of 4dB.
● Speech transmission index for public address systems ((STIPA): ≤0.7.
● Rated output power of the built-in amplifier: 4×15W.
● Support Bluetooth function: It is equipped with a built-in Bluetooth module of version 5.1, enabling wireless audio reception and convenient sharing of audio from mobile devices. It also allows for the modification of the Bluetooth username and password to prevent unauthorized connections.
● Wireless microphone teaching function: It includes a built-in 2.4G wireless microphone signal receiver module, enabling the use of a paired wireless microphone for local sound amplification. It supports one-teacher-one-microphone usage, PPT page-turning, and laser pointer functions.
● WeChat mini program function: The speaker supports connection via the WeChat mini program, allowing independent volume adjustment for the sound units in all four directions (front, back, left, and right). It also enables individual volume control for different audio sources, including AUX IN line input, wireless microphone (MIC), Bluetooth, and network audio sources, as well as the ability to modify the audio source priority. Additionally, it provides the option to turn on/off or modify the speaker’s color light effects.
● Audio source priority function: It supports flexible adjustment between three modes: network audio source priority, local audio source (Bluetooth, wireless microphone) priority, or a mixed mode combining both network and local sources.
● Support standard SIP protocol, allowing integration with SIP phone systems to enable paging and voice broadcasting via SIP phones or mobile phones.
● With 1 mono local line input and 1 stereo local line input for connecting a local integrated system or other audio source devices to expand program sources.
● With 1 stereo local line output for expanding local power output.
● Support remote web access to the speaker’s web interface, with options to set password protection for the web interface and switch between Chinese and English. Once logged in, users can modify the speaker’s IP address, SIP parameters, priority settings, and speaker channel parameters.
● Feature a built-in full-color working status indicator light strip, making the speaker’s working status clearly visible from a distance. The device can display different lighting effects to indicate network playback, idle status, or offline status, and it offers ≥10 effects such as breathing light, flowing light, and gradient color light, with adjustable speed (high, medium, low).
● Include a built-in clock display screen to show the system time and device status. With a remote control, users can adjust the volume for local line input and network audio sources, as well as view or modify network parameters such as the device’s IP address.

Thông số kỹ thuật:



AUX1 Input Sensitivity: 300±50mV
AUX1 Frequency Response: 20Hz–18kHz
AUX1 Distortion: ≤0.6%
AUX1 S/N Ratio: ≥76dB
AUX2 Input Sensitivity: 300±50mV
AUX2 Frequency Response: 20Hz–18kHz
AUX2 Distortion: ≤0.55%
AUX2 S/N Ratio: ≥76dB
Network Playback Input Sensitivity: -10 (±1)mV
Network Playback Frequency Response: 20Hz–18kHz
Network Playback Distortion: ≤0.4%
Network Playback S/N Ratio: ≥76dB
2.4G Wireless MIC Input Sensitivity: 80±10mV
2.4G Wireless MIC Frequency Response: 150Hz–10kHz
2.4G Wireless MIC Distortion: ≤0.7%
2.4G Wireless MIC S/N Ratio: ≥70dB
Bluetooth Input Sensitivity: -10±1mV
Bluetooth Frequency Response: 20Hz–18kHz
Bluetooth Distortion: ≤9%
Bluetooth S/N Ratio: ≥76dB
Power Supply: AC220V/50Hz
2.4G Wireless Microphone Transmission and Receiving Distance: ≥10m
AUX Input Sensitivity: 80mV±10mV
THD: <1%
Frequency Characteristics: 80Hz–10kHz (-3dB)
S/N Ratio: ≥70dB
Transmission and Receiving Distance: ≥10m
Pairing Method: Automatic frequency matching, automatic frequency hopping, automatic frequency locking, 1-to-1 matching
Matching Distance: Set within 3 meters, adjustable via the operational microphone
Outer Packaging Dimensions (L×W×H): 750×595×300mm
Machine Dimensions (L×W×H): Φ510×200mm
Gross Weight: 12kg
Net Weight: 8kg



Độ nhạy đầu vào AUX1: 300±50mV
Đáp tuyến tần số AUX1: 20Hz–18kHz
Độ méo AUX1: ≤0.6%
Tỷ số S/N AUX1: ≥76dB
Độ nhạy đầu vào AUX2: 300±50mV
Đáp tuyến tần số AUX2: 20Hz–18kHz
Độ méo AUX2: ≤0.55%
Tỷ số S/N AUX2: ≥76dB
Độ nhạy đầu vào phát lại mạng: -10 (±1)mV
Đáp tuyến tần số phát lại mạng: 20Hz–18kHz
Độ méo phát lại mạng: ≤0.4%
Tỷ số S/N phát lại mạng: ≥76dB
Độ nhạy đầu vào MIC không dây 2.4G: 80±10mV
Đáp tuyến tần số MIC không dây 2.4G: 150Hz–10kHz
Độ méo MIC không dây 2.4G: ≤0.7%
Tỷ số S/N MIC không dây 2.4G: ≥70dB
Độ nhạy đầu vào Bluetooth: -10±1mV
Đáp tuyến tần số Bluetooth: 20Hz–18kHz
Độ méo Bluetooth: ≤9%
Tỷ số S/N Bluetooth: ≥76dB
Nguồn cấp: AC220V/50Hz
Khoảng cách truyền và nhận micro không dây 2.4G: ≥10m
Độ nhạy đầu vào AUX: 80mV±10mV
Độ méo hài toàn phần (THD): <1%
Đặc tính tần số: 80Hz–10kHz (-3dB)
Tỷ số S/N: ≥70dB
Khoảng cách truyền và nhận: ≥10m
Phương thức ghép nối: Tự động dò tần số, tự động nhảy tần, tự động khóa tần, ghép nối 1–1
Khoảng cách ghép nối: Cài đặt trong phạm vi 3 mét, điều chỉnh qua micro vận hành
Kích thước đóng gói ngoài (D×R×C): 750×595×300mm
Kích thước máy (D×R×C): Φ510×200mm
Trọng lượng gộp: 12kg
Trọng lượng tịnh: 8kg

-----------
