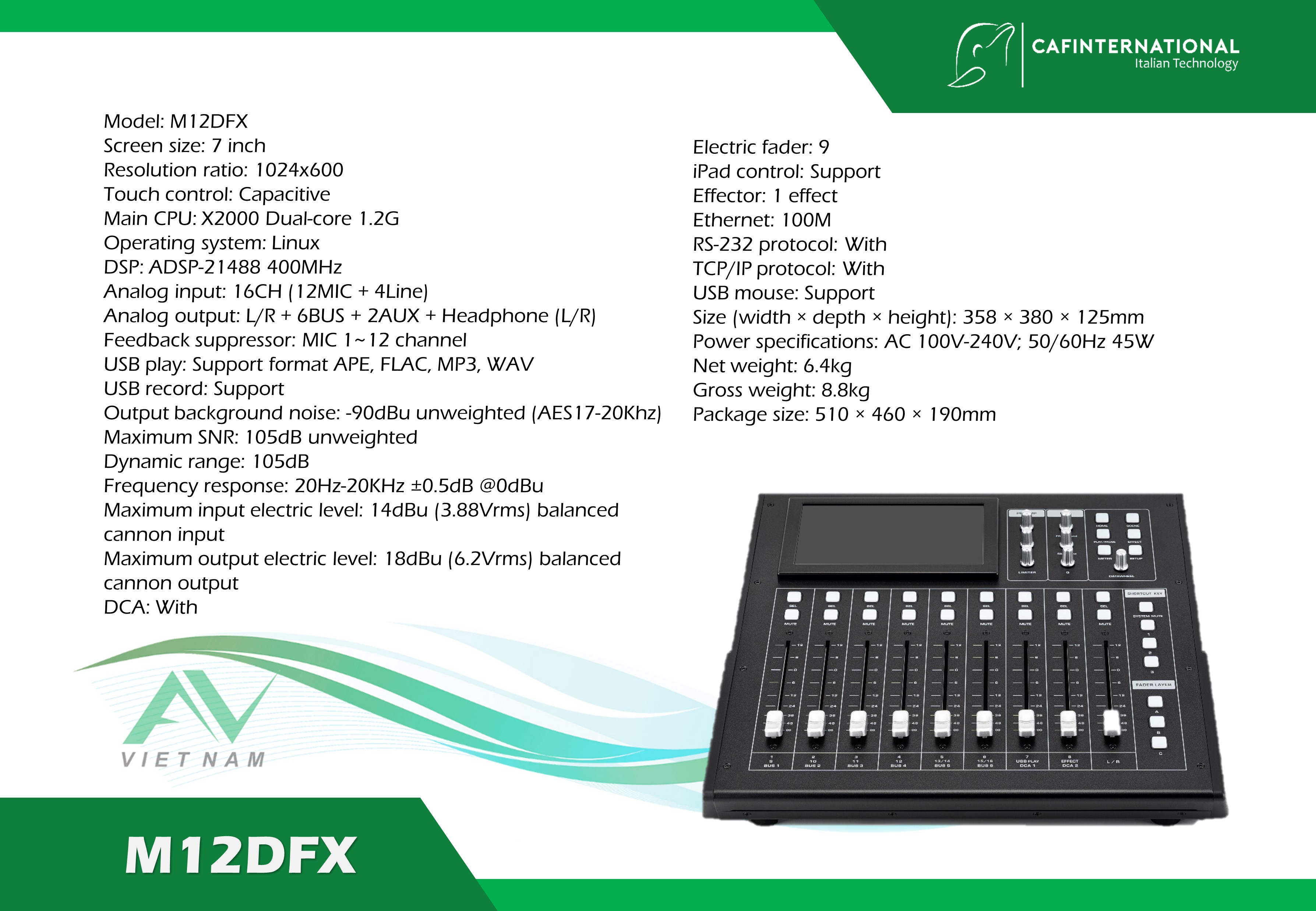

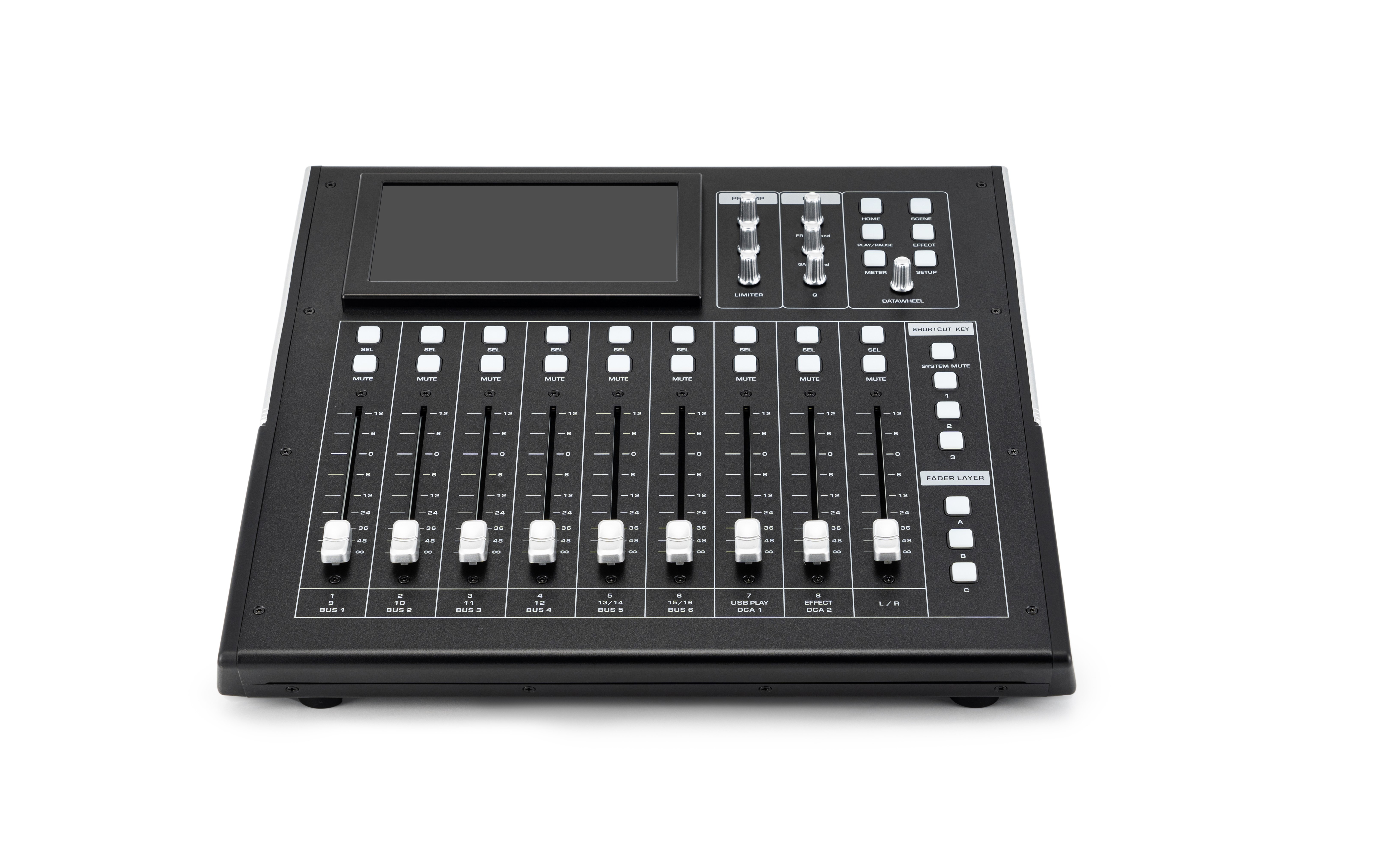

Model: M12DFX

Feature:

* 7 inches capacitive touch screen 1024x600 resolution ratio.
* Each input channel has 4-band parametric EQ, noise gate, feedback suppressor, high pass filter, low pass filter, compressor, invert.
* Each output channel has 8 parametric EQ, high pass filter and low pass filter, compressor, invert
* Output channel sound mixing bus can choose Pre-fader and Post-fader (PRE/POST).
* With 2 DCA.
* iPad touch screen full function control, real-time data synchronization.
* Support 8 terminals controlled at the same time.
* Support 2~100 groups of scene presetting function,you can export and import USB memory for data backup.
* 32 PEQ mode storage.
* Built-in oscillator: sine wave signal, pink noise, white noise.
* Channel parameter copy function, common channel copy data quickly.
* Connection mode:balanced XLR input & output.
* Fader group: 1 system mute button, 3 customized buttons.

Thông số kĩ thuật:

Screen size: 7 inch
Resolution ratio: 1024x600
Touch control: Capacitive
Main CPU: X2000 Dual-core 1.2G
Operating system: Linux
DSP: ADSP-21488 400MHz
Analog input: 16CH (12MIC + 4Line)
Analog output: L/R + 6BUS + 2AUX + Headphone (L/R)
Feedback suppressor: MIC 1~12 channel
USB play: Support format APE, FLAC, MP3, WAV
USB record: Support
Output background noise: -90dBu unweighted (AES17-20Khz)
Maximum SNR: 105dB unweighted
Dynamic range: 105dB
Frequency response: 20Hz-20KHz ±0.5dB @0dBu
Maximum input electric level: 14dBu (3.88Vrms) balanced cannon input
Maximum output electric level: 18dBu (6.2Vrms) balanced cannon output
DCA: With
Electric fader: 9
iPad control: Support
Effector: 1 effect
Ethernet: 100M
RS-232 protocol: With
TCP/IP protocol: With
USB mouse: Support
Size (width × depth × height): 358 × 380 × 125mm
Power specifications: AC 100V-240V; 50/60Hz 45W
Net weight: 6.4kg
Gross weight: 8.8kg
Package size: 510 × 460 × 190mm

-----------
