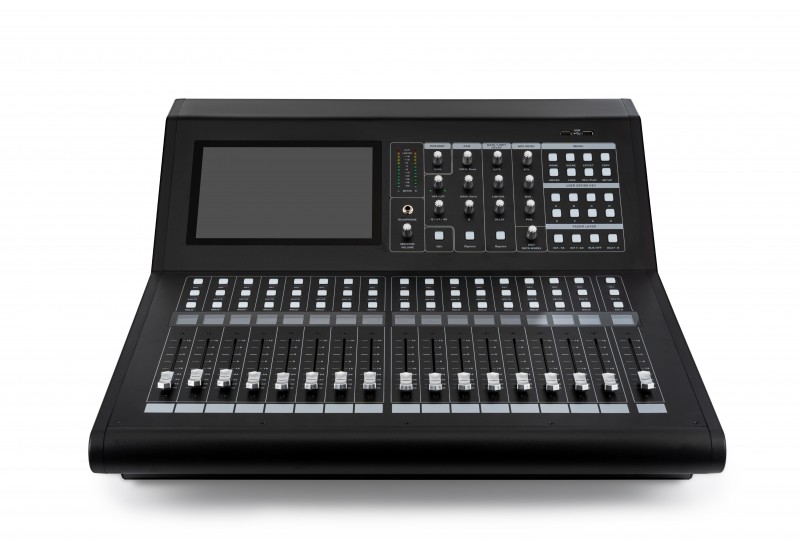

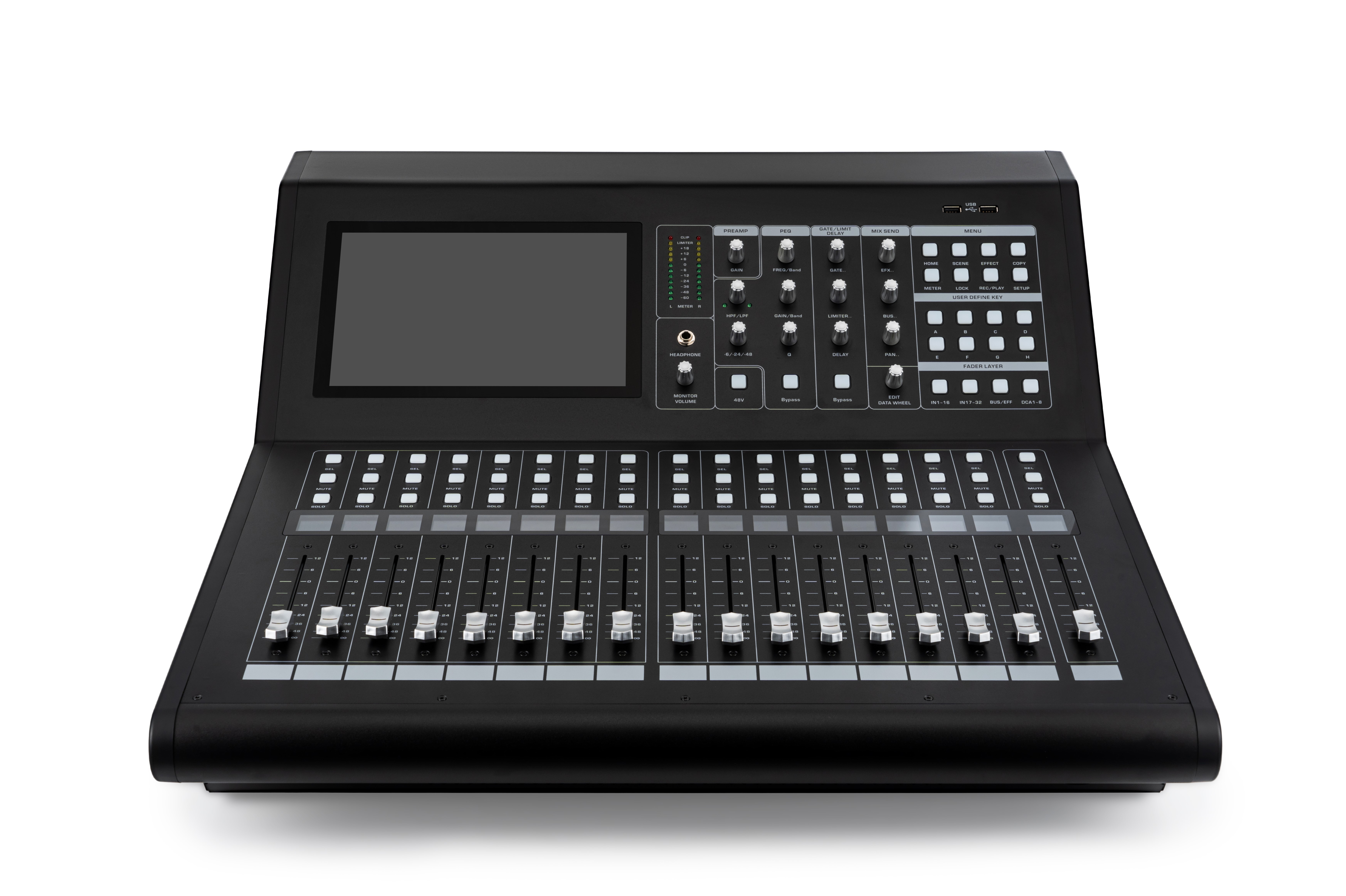

Model: M32DFX

Feature:

* 10.1 inch capacitive touch screen 1280x800 resolution
* 17 100mm electric faders
* Built-in USB record and playback function
* Support APE, FLAC, MP3 and WAV lossless audio formats
* Built-in 16-channel individual feedback suppressor
* With 8 DCA
* iPad touch screen full function control with real-time data syncing
* Support for simultaneous control of eight terminals
* 2 built-in effector modules
* ARM firmware, DSP firmware can be upgraded through the network or USB disk
* Each input channel has 4 bands of parameter equalization, noise gate, feedback suppressor, high and low pass, compression,
invert phase
* Each output channel has 8 bands of parameter equalization, high and low pass, compression, invert phase, 1 second delay
* Output channel L/R, 10BUS, Rec(L/R), Monitor(L/R)
* 10 BUS mixer bus optional fader (Pre-fader/Post-fader)
* Support 100 groups of scene preset function, can export from/ import into USB memory, easy to backup data
* 32 PEQ mode storage
* Built-in oscillator: sine wave, pink noise, white noise
* Channel parameter copy function, the same channel fast copy data
* Connection mode: balanced XLR input & output
* 8 fader links, 8 user-defined keys, 4 quick mute group keys
* Features panel locking keys (to prevent misoperation)
* Channel name can be customized

Thông số kĩ thuật:

Analog Input: 32CH (MIC/Line)
Analog Output: Main L/R + 10BUS + REC + Rec(L/R) + Monitor(L/R)
Background noise: -90dBu unweighted AES17 (20Khz)
THD+N: 0.005% @4dBu 20~20Khz
SNR: 108dB unweighted
Dynamic range: 108dB unweighted
Maximum input electric level: Balanced 20dBu
Maximum output electric level: Balanced 20dBu
Frequency response: 20Hz-20KHz ±0.3dB
Display size: 10.1 inch
Resolution ratio: 1280x800
Touch control: Capacitive
Main control CPU: Samsung 4418 4-core Cortex™-A9
Boot speed: 36 seconds
Operating system: Linux
DSP: ADSP-21489 400Mhz
USB: Record & play (support APE, FLAC, MP3, WAV)
DCA: With
Electric fader: 17
iPad control: Support
Effector: 2 effector (6 preset effect parameters, 24 user storage)
Feedback suppressor: 16 individual
Ethernet: With
RS-232 protocol: With
USB mouse: Support wired USB mouse
Power specification: AC 100-240V; 47-63Hz 100W
Size (width × depth × height): 610 × 650 × 230mm
Net weight: 22.1kg
Packed weight, size:

Air box package: 39.5kg, 800 × 710 × 350mm
Carton package: 26.5kg, 758 × 735 × 350mm

-----------
