DSPPA DMA500U - Bộ khuếch đại mixer số 500W

DSPPA DMA500U - Bộ khuếch đại mixer số 500W

Tình trạng: Còn trong kho
Liên hệ

● With segment code tube screen, and intuitive display, more convenient for users to use.
● With built-in Bluetooth, FM and USB function.
● With 3 MIC IN, 1 EMC IN, 2 AUX IN, 1 AUX OUT.
● Support 100V and 70V constant voltage output, and 4Ω~16Ω constant resistance output.
● Can be controlled by the infrared remote controller.
● With priority function, and the priority is MUTE>EMC=Alarm=Chime>MIC1>Others (When there is an alarm, no chime can be output).
● With master volume control, independent volume control of MIC and AUX, and TREBLE and Bass volume control.
● With SIREN short circuit trigger function, which can be remotely controlled by this machine or controlled by other devices, with independent alarm output.
● With MUTE short circuit trigger function, which can be remotely controlled by this machine or controlled by other devices.
● With 1 EMC IN, which can be used to input alarm signals from other devices to this machine.
● With power-off memory function


DSPPA DMA500U - Bộ khuếch đại mixer số 500W



Cam kết chất lượng

Cam kết dịch vụ

Cam kết giá tốt

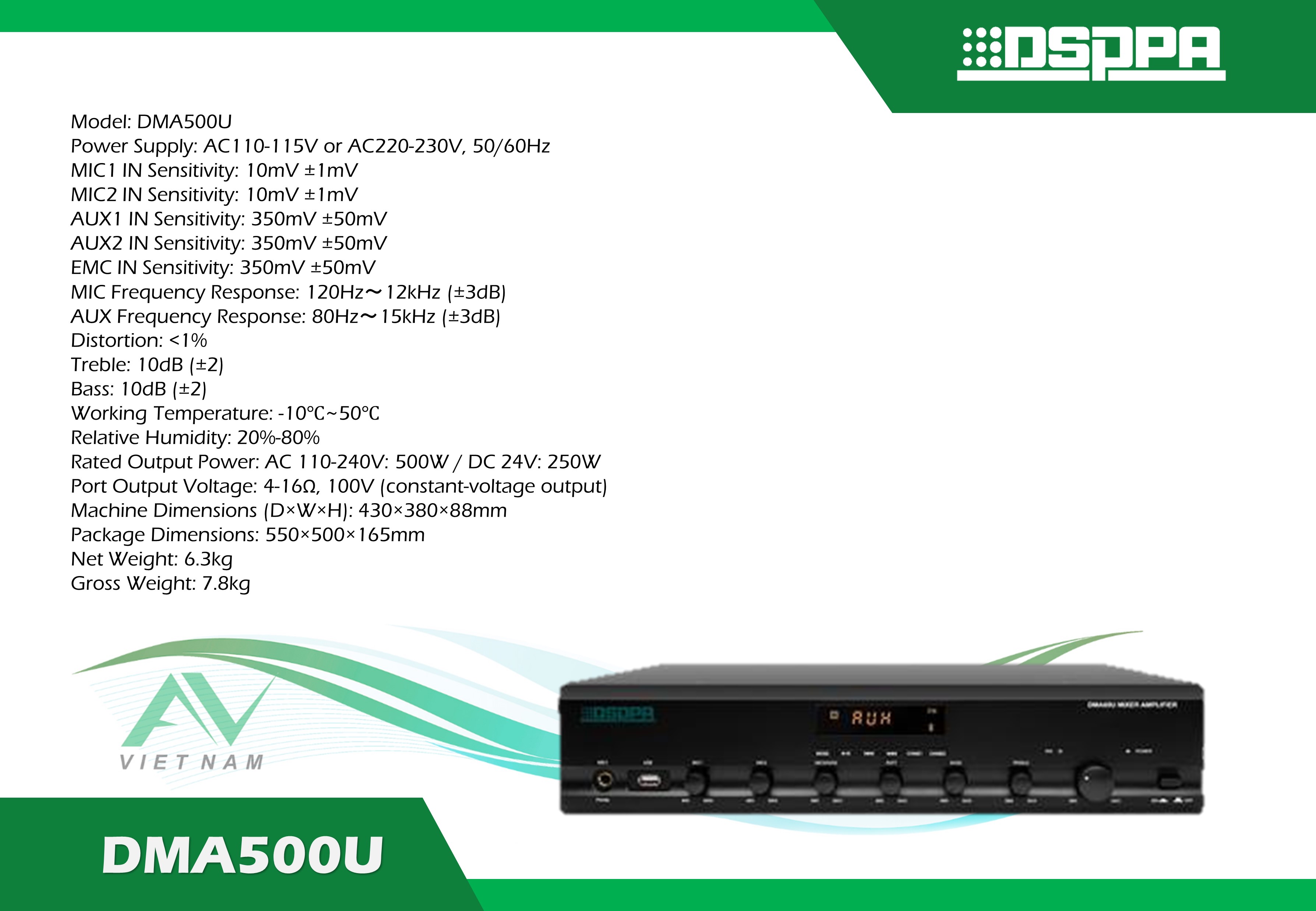

Model: DMA500U

Bộ khuếch đại kỹ thuật số DMA500U là bộ khuếch đại mixer đa chức năng tích hợp các chức năng của ổ đĩa flash USB, FM, Bluetooth. DMA500U hỗ trợ đầu ra loa 100V và trở kháng 4-16Ω. 3 cổng Mic, 2 cổng AUX, 2 cổng EMC cho đầu vào âm thanh. Nhiều chức năng đa dạng, bao gồm màn hình hiển thị trạng thái rõ ràng, EMC IN, MIC IN với nguồn phantom, ưu tiên đầu vào, thân thiện và dễ sử dụng. Thiết bị có thể đáp ứng nhu cầu của người dùng và được sử dụng rộng rãi.

DMA500U

Tính năng:

● With segment code tube screen, and intuitive display, more convenient for users to use.
● With built-in Bluetooth, FM and USB function.
● With 3 MIC IN, 1 EMC IN, 2 AUX IN, 1 AUX OUT.
● Support 100V and 70V constant voltage output, and 4Ω~16Ω constant resistance output.
● Can be controlled by the infrared remote controller.
● With priority function, and the priority is MUTE>EMC=Alarm=Chime>MIC1>Others (When there is an alarm, no chime can be output).
● With master volume control, independent volume control of MIC and AUX, and TREBLE and Bass volume control.
● With SIREN short circuit trigger function, which can be remotely controlled by this machine or controlled by other devices, with independent alarm output.
● With MUTE short circuit trigger function, which can be remotely controlled by this machine or controlled by other devices.
● With 1 EMC IN, which can be used to input alarm signals from other devices to this machine.
● With power-off memory function

Thông số kỹ thuật:



Power Supply: AC110-115V or AC220-230V, 50/60Hz
MIC1 IN Sensitivity: 10mV ±1mV
MIC2 IN Sensitivity: 10mV ±1mV
AUX1 IN Sensitivity: 350mV ±50mV
AUX2 IN Sensitivity: 350mV ±50mV
EMC IN Sensitivity: 350mV ±50mV
MIC Frequency Response: 120Hz~12kHz (±3dB)
AUX Frequency Response: 80Hz~15kHz (±3dB)
Distortion: <1%
Treble: 10dB (±2)
Bass: 10dB (±2)
Working Temperature: -10℃~50℃
Relative Humidity: 20%-80%
Rated Output Power: AC 110-240V: 500W / DC 24V: 250W
Port Output Voltage: 4-16Ω, 100V (constant-voltage output)
Machine Dimensions (D×W×H): 430×380×88mm
Package Dimensions: 550×500×165mm
Net Weight: 6.3kg
Gross Weight: 7.8kg



Nguồn điện: AC110-115V hoặc AC220-230V, 50/60Hz
Độ nhạy ngõ vào MIC1: 10mV ±1mV
Độ nhạy ngõ vào MIC2: 10mV ±1mV
Độ nhạy ngõ vào AUX1: 350mV ±50mV
Độ nhạy ngõ vào AUX2: 350mV ±50mV
Độ nhạy ngõ vào EMC: 350mV ±50mV
Đáp tuyến tần số MIC: 120Hz~12kHz (±3dB)
Đáp tuyến tần số AUX: 80Hz~15kHz (±3dB)
Độ méo: <1%
Điều chỉnh Treble: 10dB (±2)
Điều chỉnh Bass: 10dB (±2)
Nhiệt độ làm việc: -10℃~50℃
Độ ẩm tương đối: 20%-80%
Công suất ra định mức: AC 110-240V: 500W / DC 24V: 250W
Điện áp ngõ ra: 4-16Ω, 100V (ngõ ra điện áp không đổi)
Kích thước máy (D×R×C): 430×380×88mm
Kích thước đóng gói: 550×500×165mm
Trọng lượng tịnh: 6.3kg
Trọng lượng cả thùng: 7.8kg

-----------
