DSPPA DSP225NM - Loa giảng dạy

DSPPA DSP225NM - Loa giảng dạy

Tình trạng: Còn trong kho
Liên hệ

● Based on the TCP/IP protocol, the network multifunctional decoding player can work across network segments.
● Support standard SIP protocol.
● Multiple audio input: wireless MIC IN, MIC IN, 100V IN, AUX IN, network audio input.
● Support multiple audio formats: MP3, WAV, etc.
● Support one-key remote paging.
● With various control interfaces, such as I/O port and RS485 communication port.
● Can play the BGM, emergency paging and alarm signals from the host system.
● Can be controlled and played through the management software.
● Priority function: 100V IN/Network alarm>Wireless MIC/Local MIC>Network audio>AUX IN.
● Rated power 2×20W.


DSPPA DSP225NM - Loa giảng dạy



Cam kết chất lượng

Cam kết dịch vụ

Cam kết giá tốt

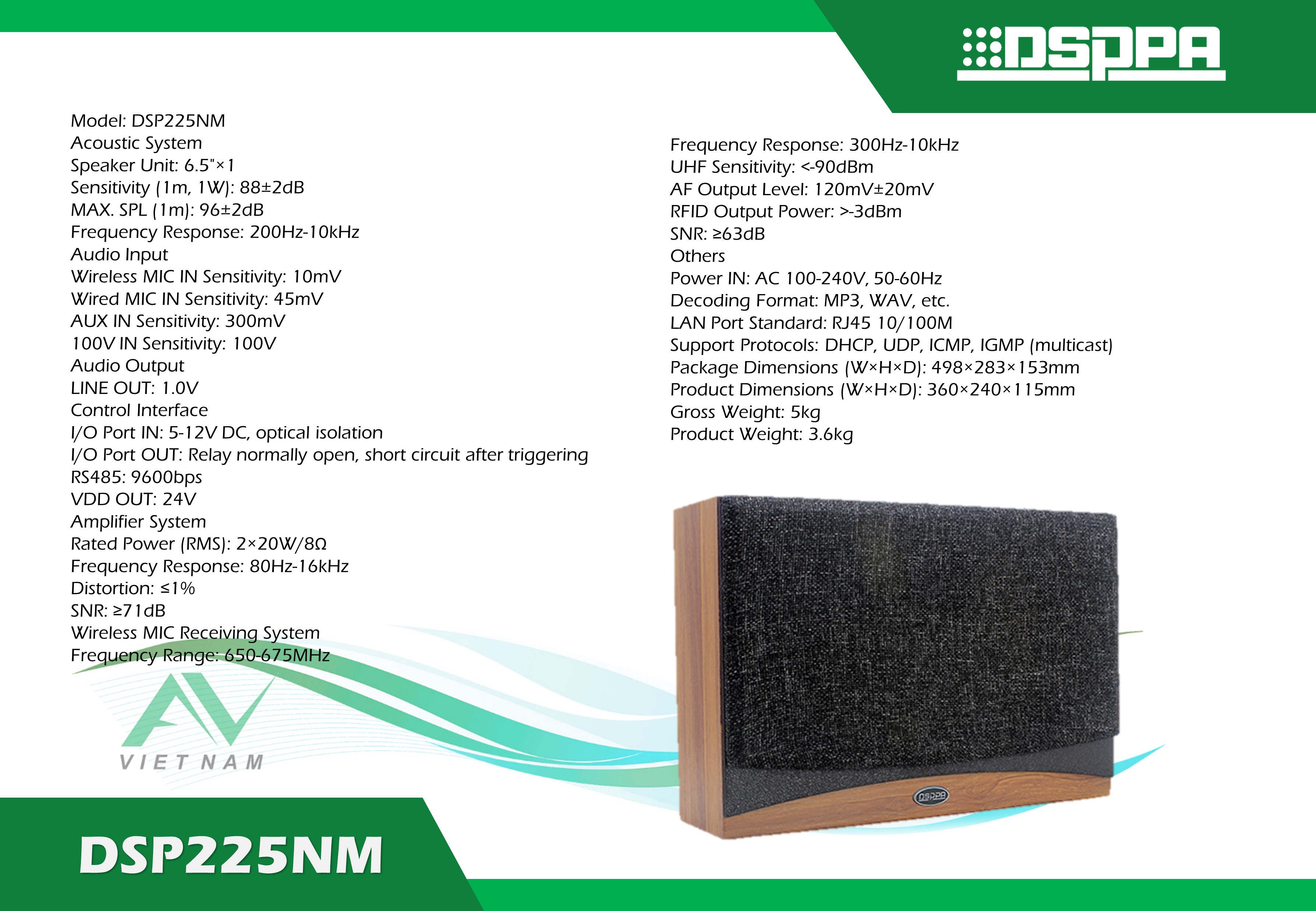

Model: DSP225NM

DSP225NM là loa giảng dạy tích hợp tăng cường âm thanh cục bộ, giảng dạy đa phương tiện và phát sóng mạng, với chức năng ưu tiên 100V. Vỏ loa được làm từ ván sợi chất lượng cao và gỗ bạch dương ép lạnh, cho phép lắp đặt treo tường và hỗ trợ loa phụ để đảm bảo chất lượng âm thanh cao. Đây là lựa chọn tốt nhất cho giảng dạy, các bài giảng quy mô lớn, đào tạo kinh doanh, phòng tiệc, siêu thị và các địa điểm khác.

DSP225NM

Tính năng:

● Based on the TCP/IP protocol, the network multifunctional decoding player can work across network segments.
● Support standard SIP protocol.
● Adopt RFID automatic frequency pairing technology, to realize automatic frequency pairing with the receiver at a certain distance without manual operation.
● Adopt 2.4G frequency pairing method to obtain a larger range and stronger anti-interference ability. After the receiver is paired with the transmitter, the pairing signal of the receiver will enter a silent state to avoid crosstalk of other devices nearby.
● Adopt anti-crosstalk voice encryption technology. When the device completes the frequency pairing to enter the voice transmission, the voice transmission between the devices will be under digital encrypted transmission, and other devices cannot communicate with the receiver.
● With three levels of adjustable voice receiving distance, to set three kinds of voice receiving distances, the largest for a space of about 15×8 meters, the middle for about 12×6 meters, and the smallest for about 9×6 meters.
● Multiple audio input: wireless MIC IN, MIC IN, 100V IN, AUX IN, network audio input.
● Support multiple audio formats: MP3, WAV, etc.
● Support one-key remote paging.
● With various control interfaces, such as I/O port and RS485 communication port.
● Can play the BGM, emergency paging and alarm signals from the host system.
● Can be controlled and played through the management software.
● Priority function: 100V IN/Network alarm>Wireless MIC/Local MIC>Network audio>AUX IN.
● Rated power 2×20W.

Thông số kỹ thuật:



Acoustic System
Speaker Unit: 6.5"×1
Sensitivity (1m, 1W): 88±2dB
MAX. SPL (1m): 96±2dB
Frequency Response: 200Hz-10kHz
Audio Input
Wireless MIC IN Sensitivity: 10mV
Wired MIC IN Sensitivity: 45mV
AUX IN Sensitivity: 300mV
100V IN Sensitivity: 100V
Audio Output
LINE OUT: 1.0V
Control Interface
I/O Port IN: 5-12V DC, optical isolation
I/O Port OUT: Relay normally open, short circuit after triggering
RS485: 9600bps
VDD OUT: 24V
Amplifier System
Rated Power (RMS): 2×20W/8Ω
Frequency Response: 80Hz-16kHz
Distortion: ≤1%
SNR: ≥71dB
Wireless MIC Receiving System
Frequency Range: 650-675MHz
Frequency Response: 300Hz-10kHz
UHF Sensitivity: <-90dBm
AF Output Level: 120mV±20mV
RFID Output Power: >-3dBm
SNR: ≥63dB
Others
Power IN: AC 100-240V, 50-60Hz
Decoding Format: MP3, WAV, etc.
LAN Port Standard: RJ45 10/100M
Support Protocols: DHCP, UDP, ICMP, IGMP (multicast)
Package Dimensions (W×H×D): 498×283×153mm
Product Dimensions (W×H×D): 360×240×115mm
Gross Weight: 5kg
Product Weight: 3.6kg



Hệ thống âm học
Củ loa: 6.5"×1
Độ nhạy (1m, 1W): 88±2dB
Mức áp suất âm cực đại (1m): 96±2dB
Đáp tuyến tần số: 200Hz-10kHz
Ngõ vào âm thanh
Độ nhạy Wireless MIC IN: 10mV
Độ nhạy Wired MIC IN: 45mV
Độ nhạy AUX IN: 300mV
Độ nhạy 100V IN: 100V
Ngõ ra âm thanh
LINE OUT: 1.0V
Giao diện điều khiển
I/O Port IN: 5-12V DC, cách ly quang
I/O Port OUT: Rơ-le thường mở, ngắn mạch sau khi kích hoạt
RS485: 9600bps
VDD OUT: 24V
Hệ thống khuếch đại
Công suất định mức (RMS): 2×20W/8Ω
Đáp tuyến tần số: 80Hz-16kHz
Độ méo: ≤1%
Tỷ số S/N: ≥71dB
Hệ thống thu MIC không dây
Dải tần số: 650-675MHz
Đáp tuyến tần số: 300Hz-10kHz
Độ nhạy UHF: <-90dBm
Mức ngõ ra AF: 120mV±20mV
Công suất ngõ ra RFID: >-3dBm
Tỷ số S/N: ≥63dB
Khác
Nguồn điện vào: AC 100-240V, 50-60Hz
Định dạng giải mã: MP3, WAV, v.v.
Chuẩn cổng LAN: RJ45 10/100M
Giao thức hỗ trợ: DHCP, UDP, ICMP, IGMP (multicast)
Kích thước đóng gói (R×C×S): 498×283×153mm
Kích thước sản phẩm (R×C×S): 360×240×115mm
Trọng lượng cả thùng: 5kg
Trọng lượng tịnh: 3.6kg

-----------
