● 72.5° wide angle lens + 16x digital zoom
● Support H.265 encoding, achieve full HD 1080p/60fps ultra-low bandwidth transmission
● Adopt a new generation of Panasonic 1/2.7-inch, 2.07 million effective pixels high-quality HD CMOS sensor
● Output frame rate up to 60fps at 1080P, up to 120fps at 720p (S models support), up to 240fps at 640x480 (S model support, optional)
● Built-in face detection module, face detection for PTZ tracking (optional)
● Support AAC audio encoding, better sound quality, less bandwidth consumption
● Support local storage function, realize U disk record without NVR
● The new CMOS image sensor with ultra-high SNR can effectively reduce image noise in low-light conditions
● Control with RS232 and RS485 serial ports
● HDMI, SDI, and network can be output at the same time
● Support preset process image freeze function

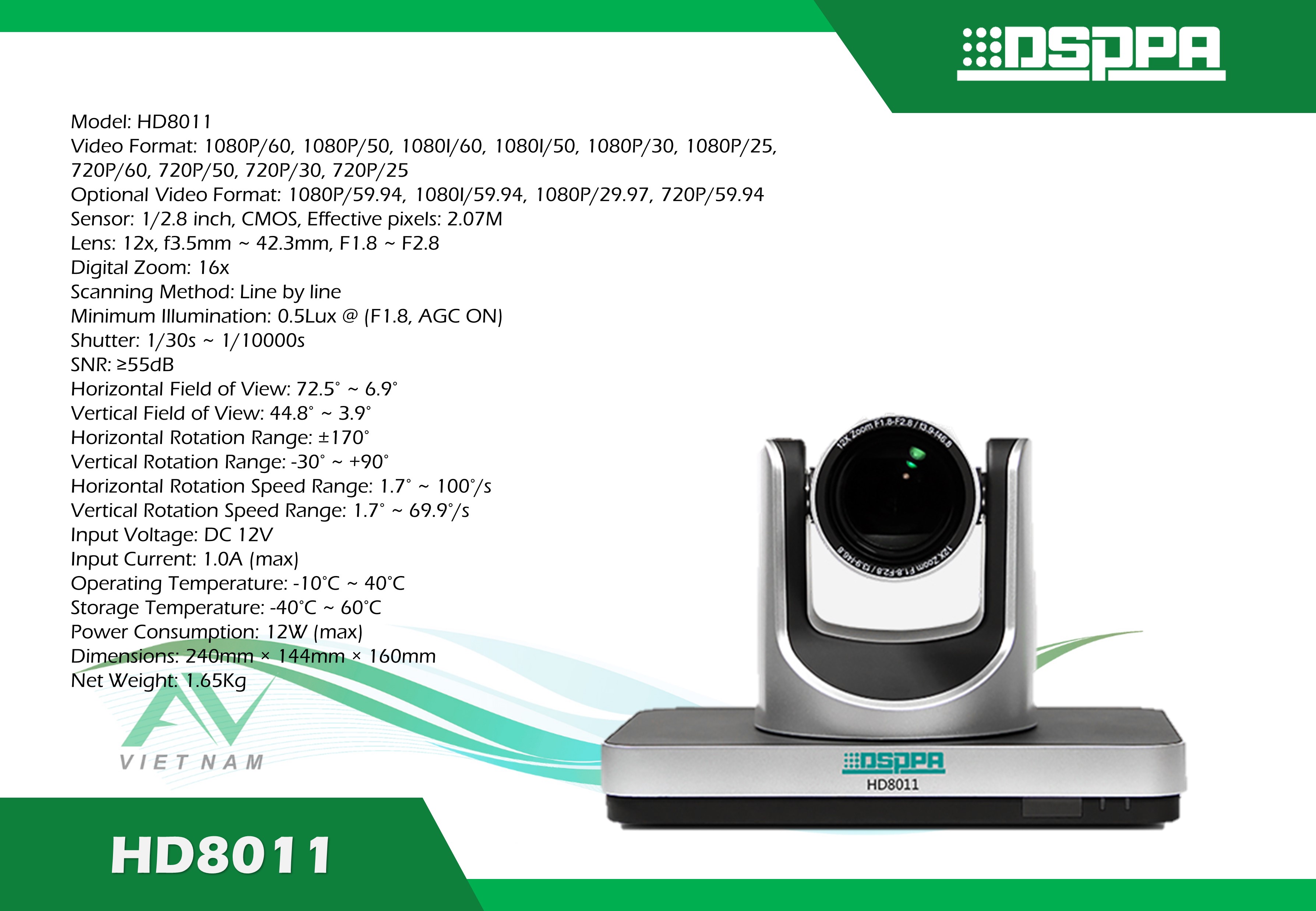

Video Format: 1080P/60, 1080P/50, 1080I/60, 1080I/50, 1080P/30, 1080P/25, 720P/60, 720P/50, 720P/30, 720P/25
Optional Video Format: 1080P/59.94, 1080I/59.94, 1080P/29.97, 720P/59.94
Sensor: 1/2.8 inch, CMOS, Effective pixels: 2.07M
Lens: 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom: 16x
Scanning Method: Line by line
Minimum Illumination: 0.5Lux @ (F1.8, AGC ON)
Shutter: 1/30s ~ 1/10000s
SNR: ≥55dB
Horizontal Field of View: 72.5° ~ 6.9°
Vertical Field of View: 44.8° ~ 3.9°
Horizontal Rotation Range: ±170°
Vertical Rotation Range: -30° ~ +90°
Horizontal Rotation Speed Range: 1.7° ~ 100°/s
Vertical Rotation Speed Range: 1.7° ~ 69.9°/s
Input Voltage: DC 12V
Input Current: 1.0A (max)
Operating Temperature: -10°C ~ 40°C
Storage Temperature: -40°C ~ 60°C
Power Consumption: 12W (max)
Dimensions: 240mm × 144mm × 160mm
Net Weight: 1.65Kg
