DSPPA MAG2123S - Bộ quản lý nguồn điện (1U)

DSPPA MAG2123S - Bộ quản lý nguồn điện (1U)

Tình trạng: Còn trong kho
Liên hệ

● Independent 8-channel high power output, universal socket which supports multiple three-pole power socket, such as Chinese Standard Socket, American Standard Socket and European Standard Socket
● Maximal output of single channel is 10A, and total input current capacity is 10A
● On/off status of eight channels could be controlled and displayed on the front panel. On/off of all channels could be realized through the panel one-click switch
● Boot from the front to the back in order to start the various types of equipment, and shutdown from the back to the front one by one to shut down the equipment. Effective unified management control of electrical equipment ensures the stable operation of the entire system
● Can be widely used in multimedia classrooms, multi-function halls, conference rooms, projection splicing, video conferencing, monitoring center, building control, management and command center and other fields


DSPPA MAG2123S - Bộ quản lý nguồn điện (1U)



Cam kết chất lượng

Cam kết dịch vụ

Cam kết giá tốt

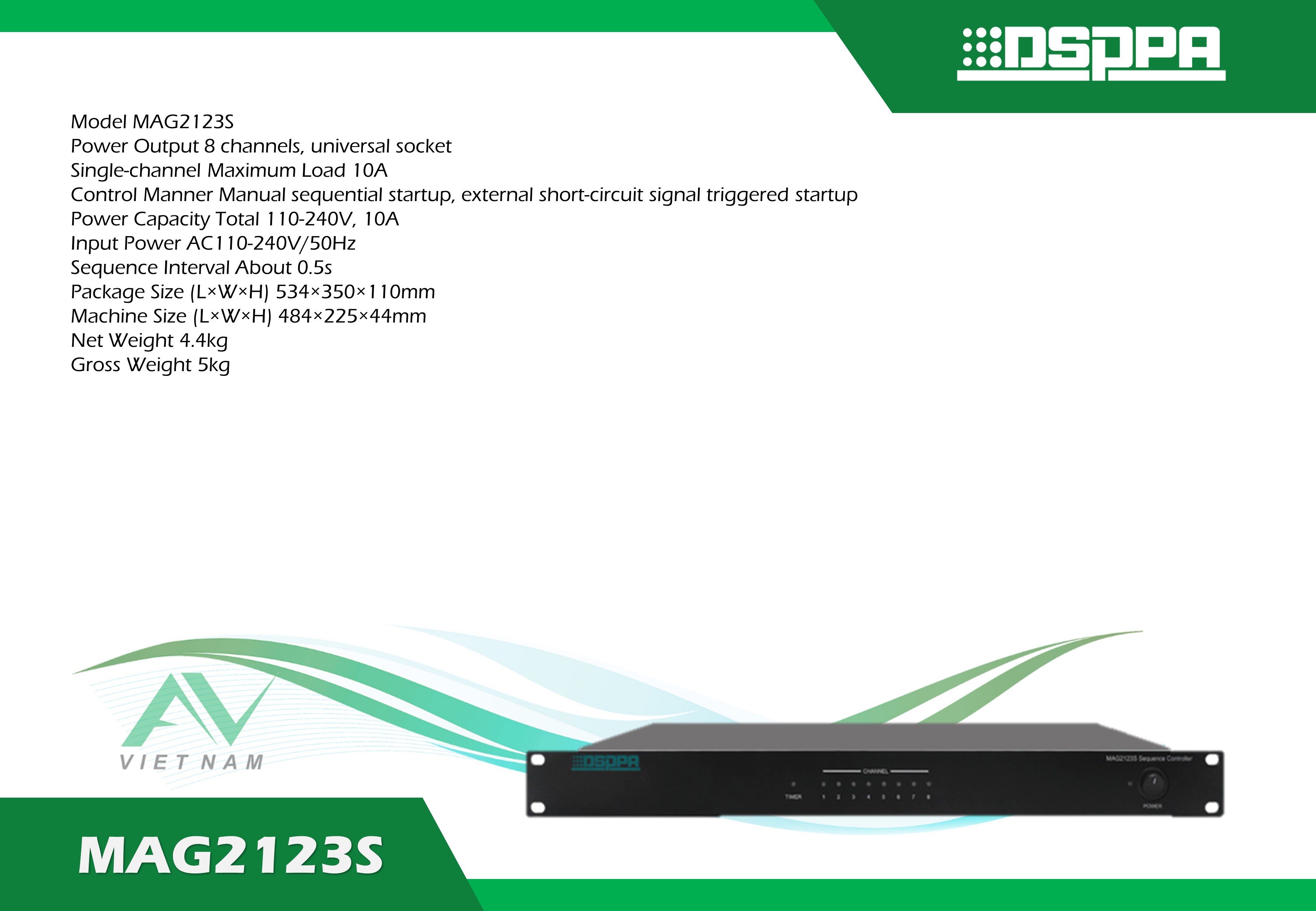

Model: MAG2123S

Bộ điều khiển chuỗi nguồn 8 kênh có đầu ra công suất cao 8 kênh độc lập với ổ cắm đa năng, cung cấp khả năng kiểm soát hiệu quả trạng thái bật/tắt cho từng kênh, phù hợp với nhiều bối cảnh khác nhau như lớp học, hội trường và phòng hội nghị.

MAG2123S

Tính năng:

● Independent 8-channel high power output, universal socket which supports multiple three-pole power socket, such as Chinese Standard Socket, American Standard Socket and European Standard Socket
● Maximal output of single channel is 10A, and total input current capacity is 10A
● On/off status of eight channels could be controlled and displayed on the front panel. On/off of all channels could be realized through the panel one-click switch
● Boot from the front to the back in order to start the various types of equipment, and shutdown from the back to the front one by one to shut down the equipment. Effective unified management control of electrical equipment ensures the stable operation of the entire system
● Can be widely used in multimedia classrooms, multi-function halls, conference rooms, projection splicing, video conferencing, monitoring center, building control, management and command center and other fields

Thông số kỹ thuật:



Power Output 8 channels, universal socket
Single-channel Maximum Load 10A
Control Manner Manual sequential startup, external short-circuit signal triggered startup
Power Capacity Total 110-240V, 10A
Input Power AC110-240V/50Hz
Sequence Interval About 0.5s
Package Size (L×W×H) 534×350×110mm
Machine Size (L×W×H) 484×225×44mm
Net Weight 4.4kg
Gross Weight 5kg



Ngõ ra nguồn 8 kênh, ổ cắm đa năng
Tải tối đa mỗi kênh 10A
Phương thức điều khiển Khởi động tuần tự bằng tay, khởi động bằng tín hiệu ngắn mạch ngoài
Dung lượng nguồn Tổng 110-240V, 10A
Nguồn vào AC110-240V/50Hz
Khoảng thời gian tuần tự Khoảng 0.5 giây
Kích thước đóng gói (D×R×C) 534×350×110mm
Kích thước máy (D×R×C) 484×225×44mm
Trọng lượng tịnh 4.4kg
Trọng lượng gộp 5kg

-----------
