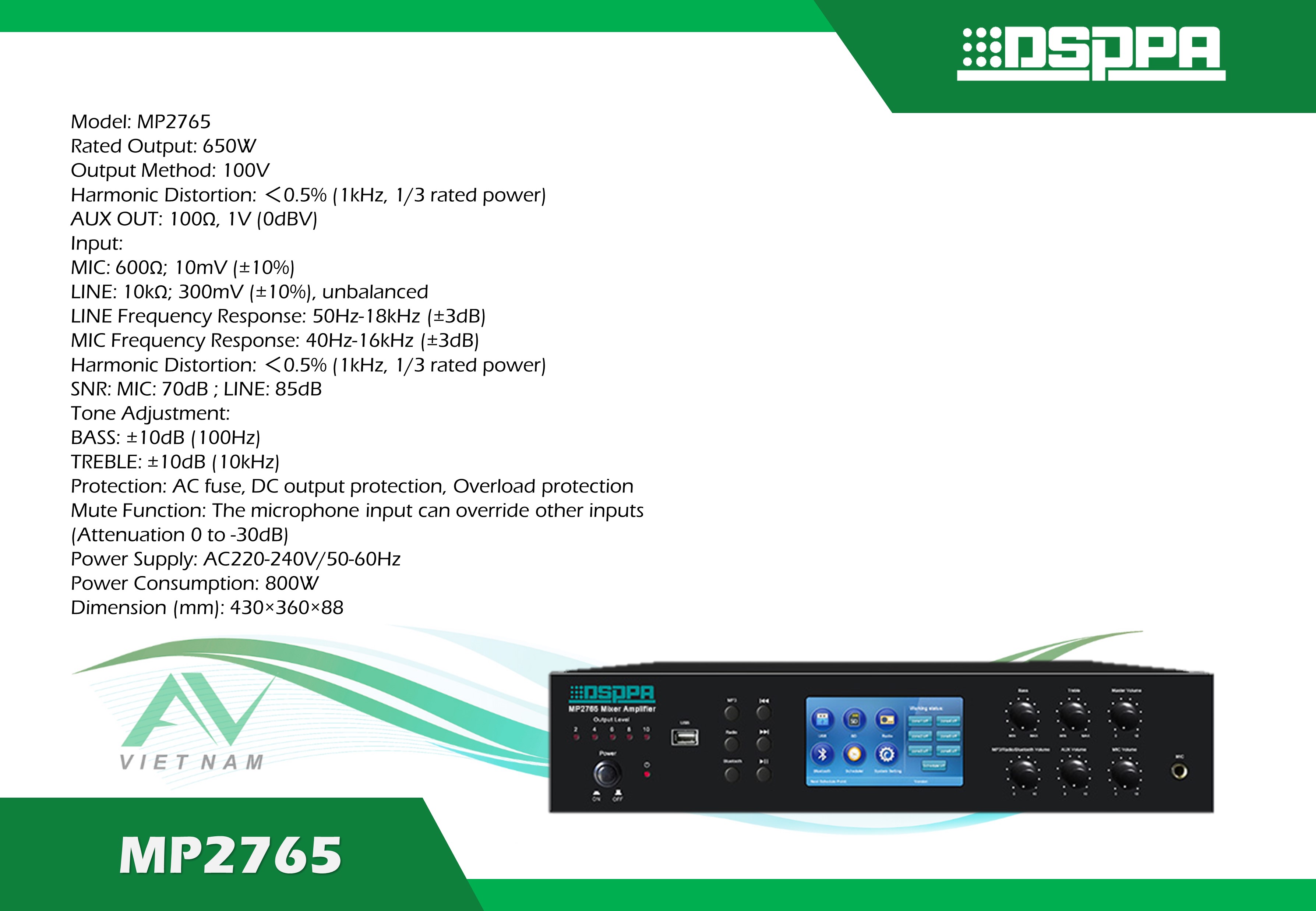

Model: MP2765
Bộ khuếch đại Mixer tích hợp MP2765 là bộ khuếch đại Mix 6 vùng tích hợp các chức năng của ổ đĩa U, thẻ SD, bộ dò sóng, radio, Bluetooth, vùng và bộ hẹn giờ. Với nhiều chức năng đa dạng, bao gồm phát nhạc, radio, lên lịch thời gian, v.v. Điều khiển bằng màn hình cảm ứng, giao diện đồ họa toàn diện, thao tác rất đơn giản và thân thiện với người dùng. Thiết bị có thể đáp ứng nhu cầu của người dùng và có thể được ứng dụng rộng rãi.
Tính năng:
● Rate power:650W Power output: 100V
● Support USB/SD/MP3/AM & FM/Bluetooth/schedule player;Built-in Bluetooth receiver module.
● 6 zones output with separated switch control
● 4.3” TFT capacitance touch screen.
● 1 AUX ,1 Mic input ,1 AUX output.
● Built-in 4G MP3 program memory.
● Built-in radio; it can be manually / automatically searched and can store 40 radio channels.
● Separate volume control for MP3/FM/Bluetooth, AUX, Mic inputs

Thông số kỹ thuật:
Rated Output: 650W Output Method: 100V Harmonic Distortion: <0.5% (1kHz, 1/3 rated power) AUX OUT: 100Ω, 1V (0dBV) Input: MIC: 600Ω; 10mV (±10%) LINE: 10kΩ; 300mV (±10%), unbalanced LINE Frequency Response: 50Hz-18kHz (±3dB) MIC Frequency Response: 40Hz-16kHz (±3dB) Harmonic Distortion: <0.5% (1kHz, 1/3 rated power) SNR: MIC: 70dB ; LINE: 85dB Tone Adjustment: BASS: ±10dB (100Hz) TREBLE: ±10dB (10kHz) Protection: AC fuse, DC output protection, Overload protection Mute Function: The microphone input can override other inputs (Attenuation 0 to -30dB) Power Supply: AC220-240V/50-60Hz Power Consumption: 800W Dimension (mm): 430×360×88
|
|
-----------
